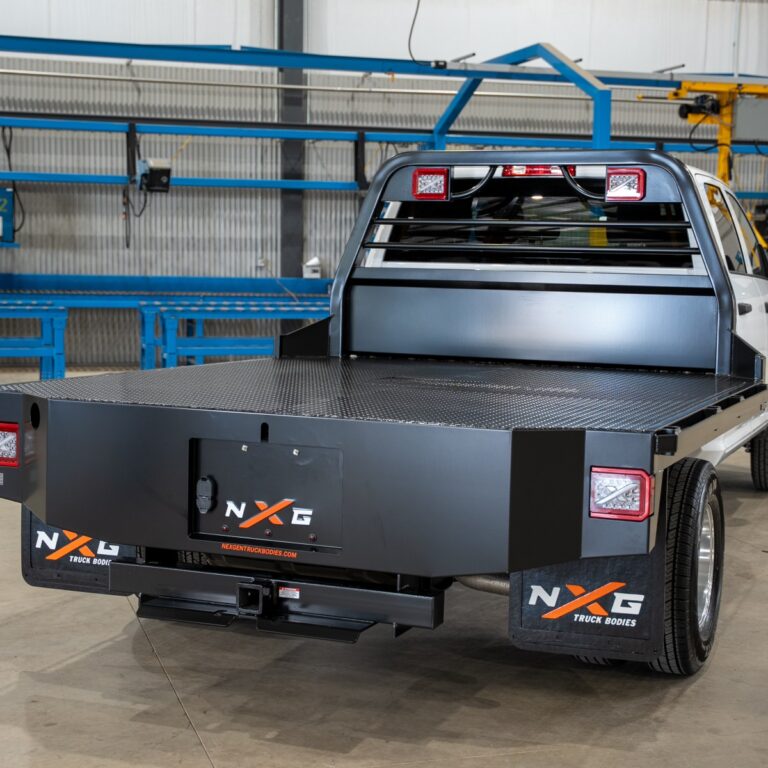

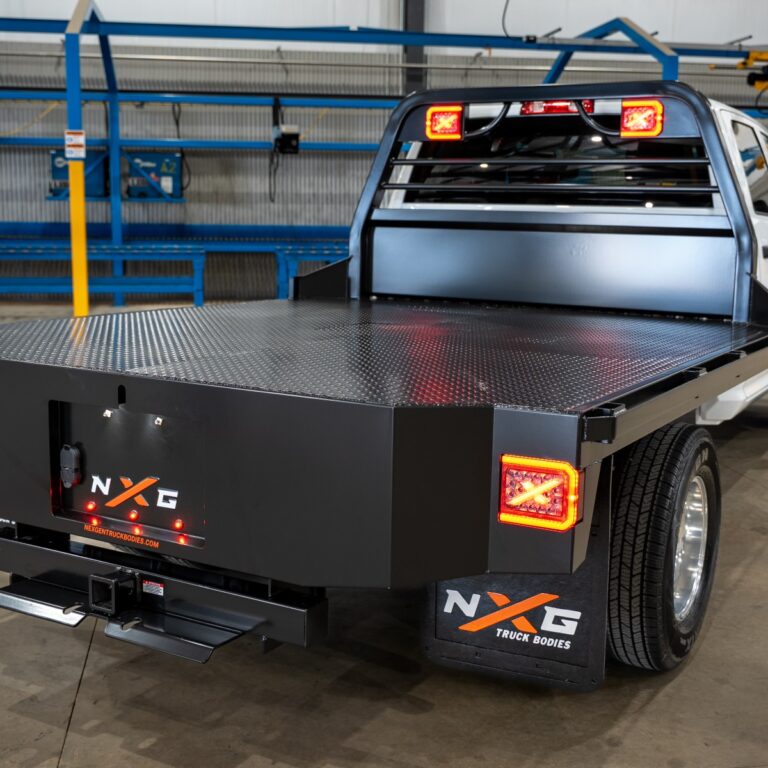

Steel Deluxe Flat Body (XFD)
Built to Work. Ready for Anything
The XFD is the backbone of demanding operations—engineered for commercial users who expect unrelenting performance from their flatbed. Equipped with industry-leading features like our integrated XRack—a precision mandrel-bent headache rack—our best-in-class XHitch, innovative XLights with strobe capability, and our corrosion-resistant XCoat finish, the XFD delivers power, durability, and a bold look to every job site.
Specs & Options
| Feature | Availability | Details |
|---|---|---|
| Available Lengths | Standard | 84", 8'6", 9'4", 11'4" |
| XCoat | Standard | NXG's proprietary multi-stage cleaning and powder coating system delivers unmatched corrosion resistance and a professional, durable finish built for harsh environments |
| XRack | Standard | Fully integrated headache rack system, built into the body-not bolted on-with 3" x 4" steel tubing, mandrel bends, and built-in Xlights with strobe capability for job-site safety |

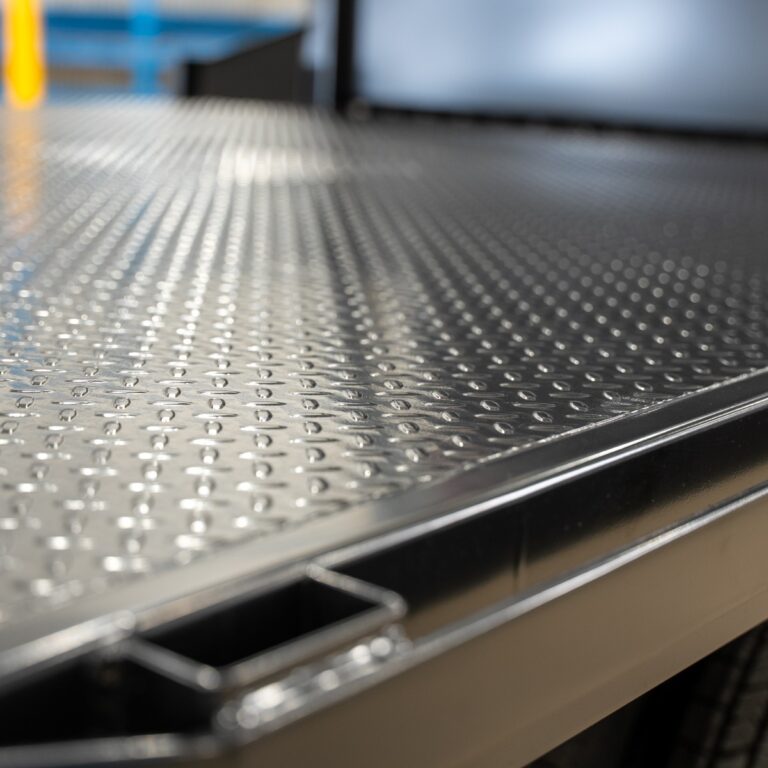

| XDeck | Standard | Fully recessed 1/8" steel tread plate deck maximizes cargo space and eliminates exposed edges, protecting against wear and corrosion |
| XHitch | Standard | Frame-integrated towing system with 30,000 lb gooseneck, 24,500 lb receiver, upright safety chain keepers, pre-wired electrical connections, and emergency breakaway loop |
| Side Rails | Standard | 3/8" × 2" formed steel rub rails with integrated stake pockets and tie-down compatibility |
| Fuel Fill | Standard | Angled corrosion-resistant design, reduced splashback, rear-facing location |
| Trailer Light Plug | Standard | Seven-way/four-way 12-volt automotive-grade electrical hookup |

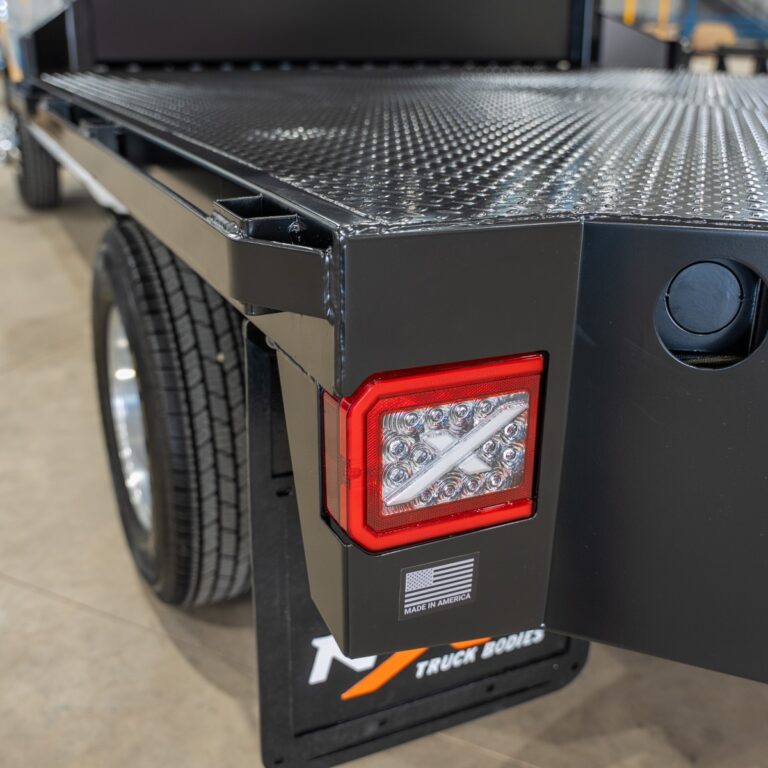

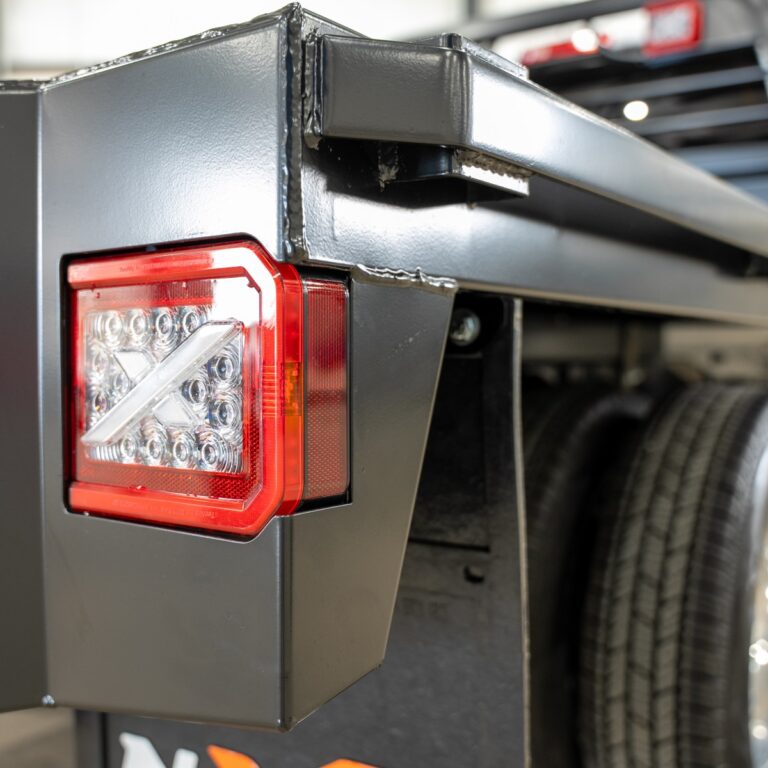

| Marker Lighting | Standard | DOT-approved LED bullet lights |
| Toolboxes | Standard | Four lockable flush-mounted toolboxes with weather sealing |
| Toolbox Handles | Standard | Black T-handle compression latches, keyed alike |
| Fenders | Standard | Heavy-duty steel radius fenders |
| Side Steps | Standard | NXG XSteps front, rear, and behind fenders for bed access |
| Frame Rails | Standard | 4” structural channel steel |
| Crossmembers | Standard | 3" roll-formed steel for load support |
| Rear Skirt | Standard | One-piece formed steel with tapered corners |
| Gooseneck Hitch | Standard | XHitch rated at 30,000 lbs |
| Receiver Hitch | Standard | XHitch rated at 25,000 lbs with 2.5” receiver |
Standard Features

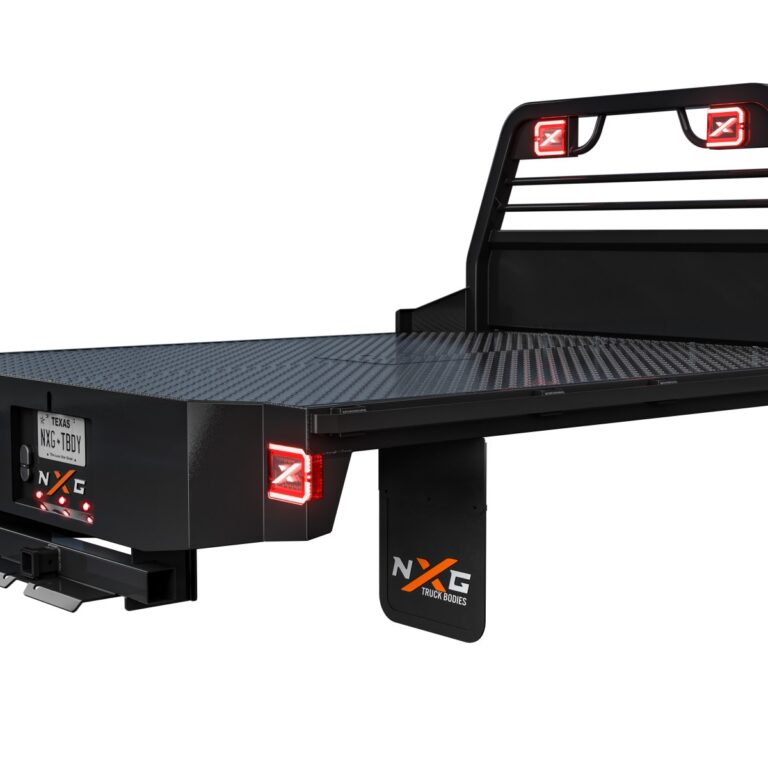

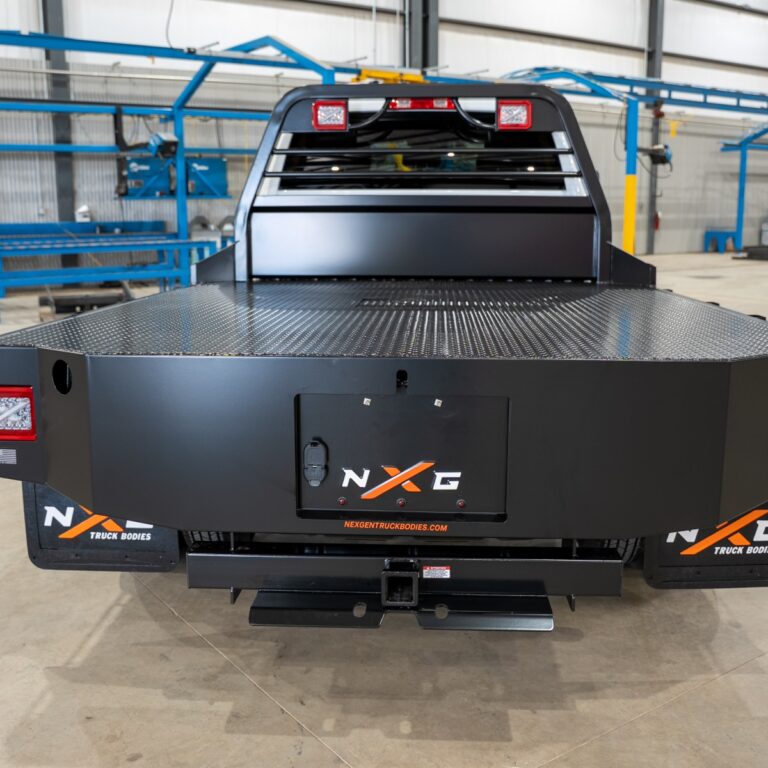

XRack: Fully Welded Headache Rack

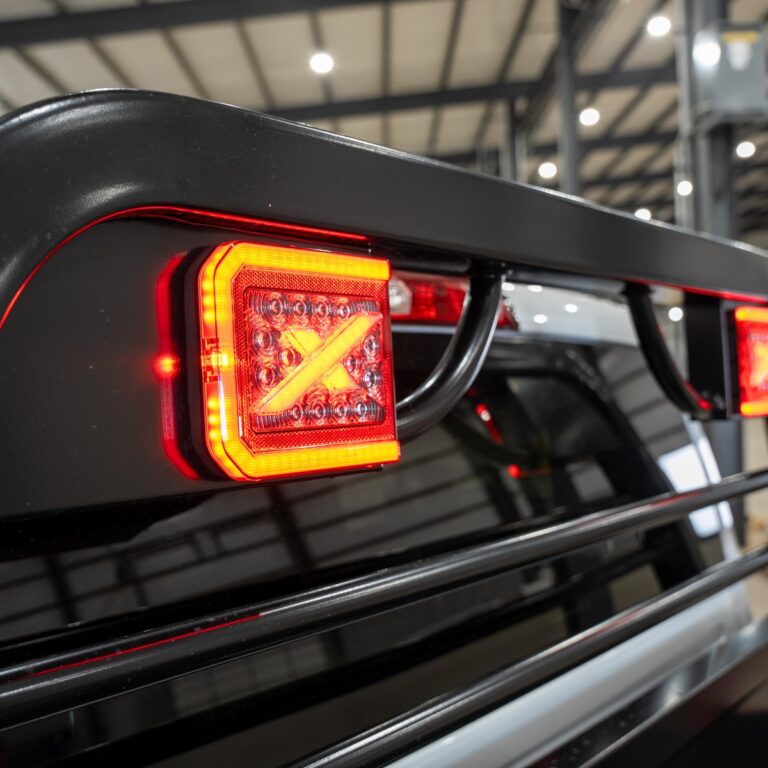

Fully integrated headache rack system, built into the body—not bolted on, with precision 3″ × 4″ steel tubing, mandrel bends, and built-in XLights for unmatched strength, protection, and safety.
