Steel Skirted Base Body (XSB)
Built Bold. Styled to Perform. Engineered for the Work Ahead.

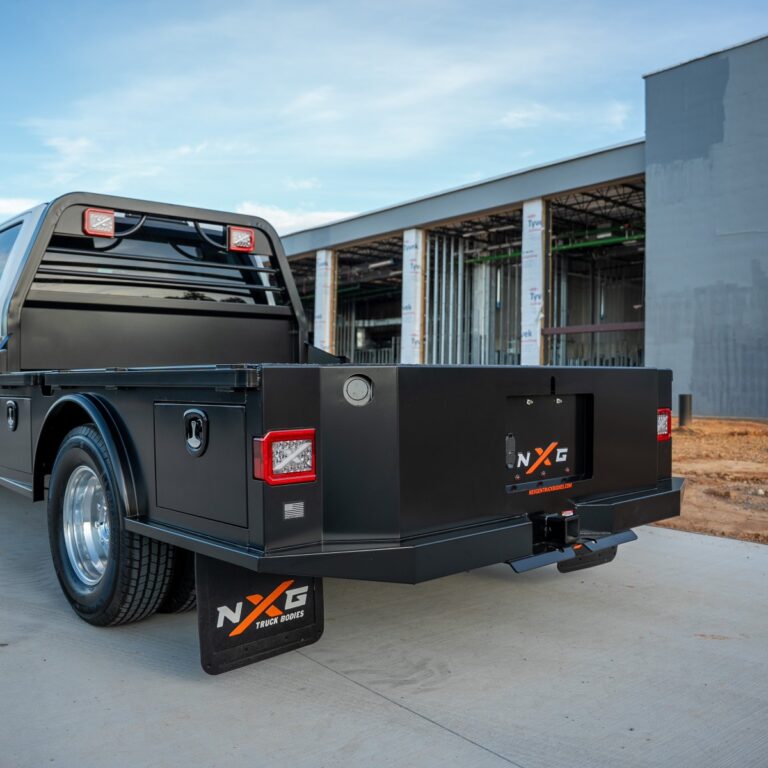

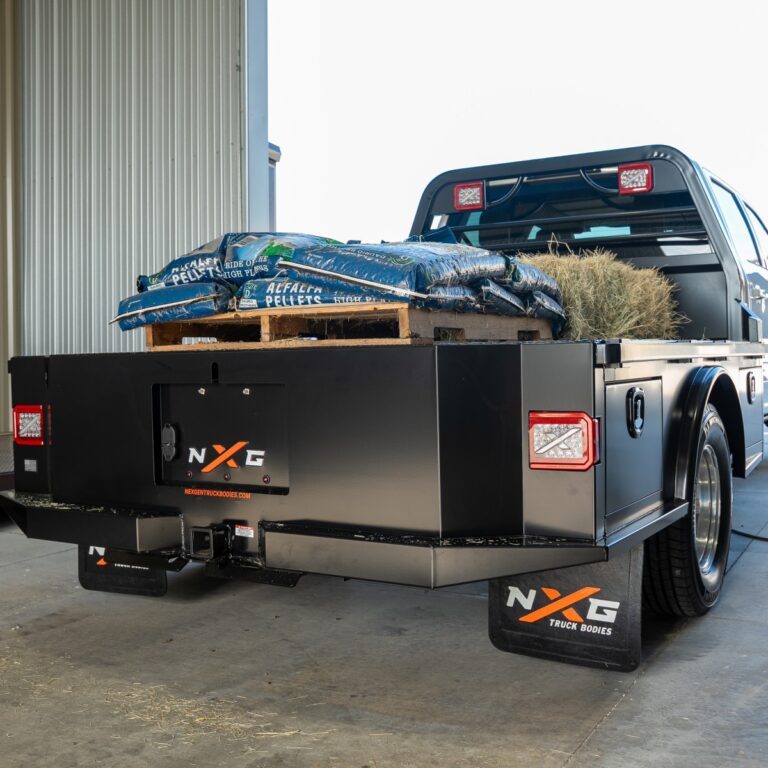

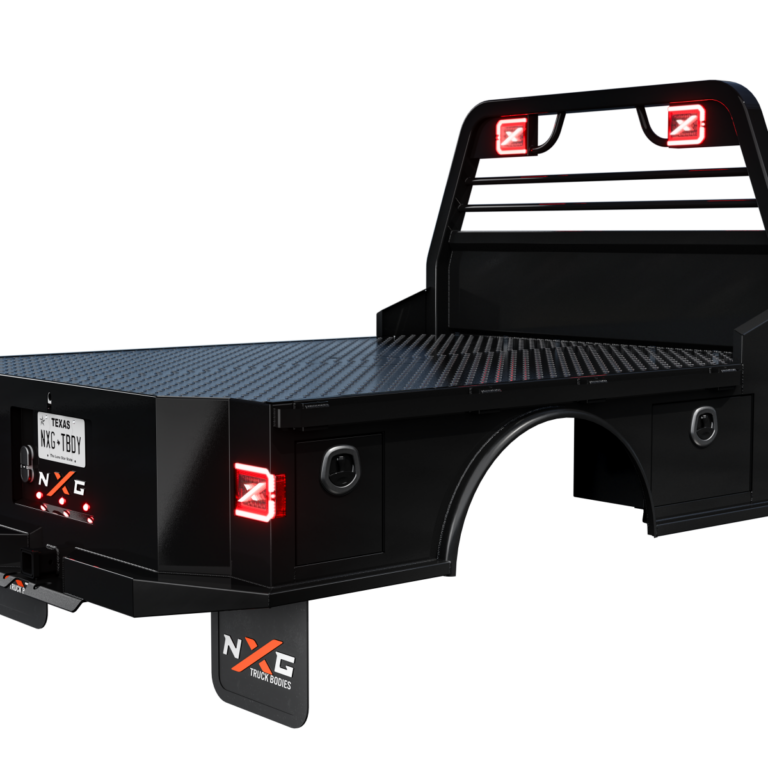

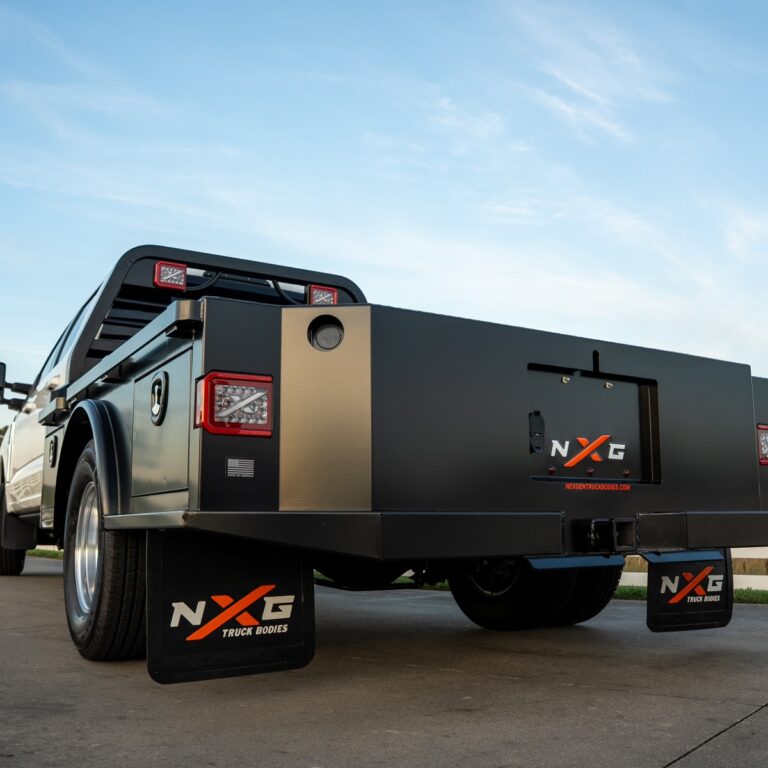

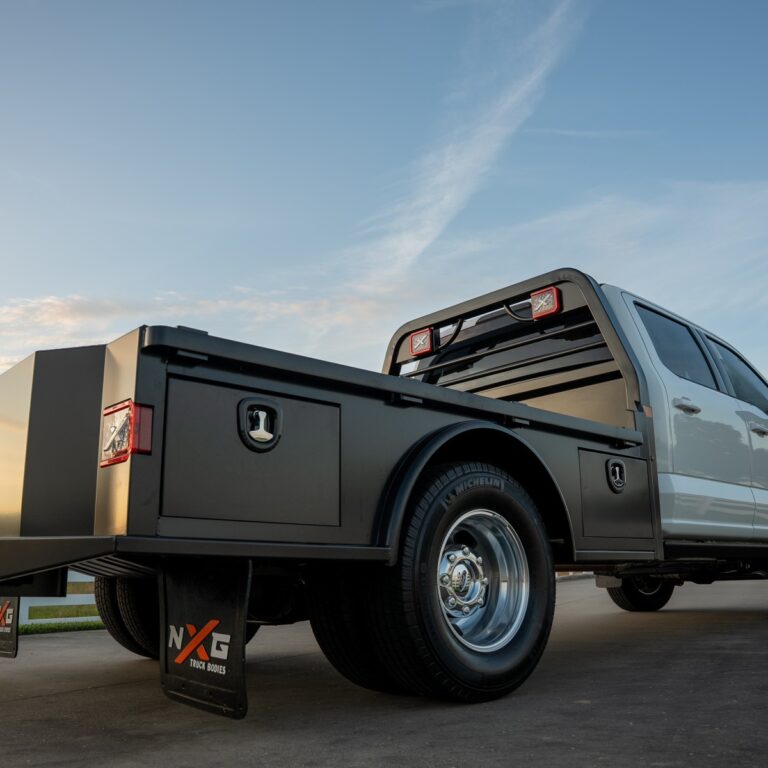

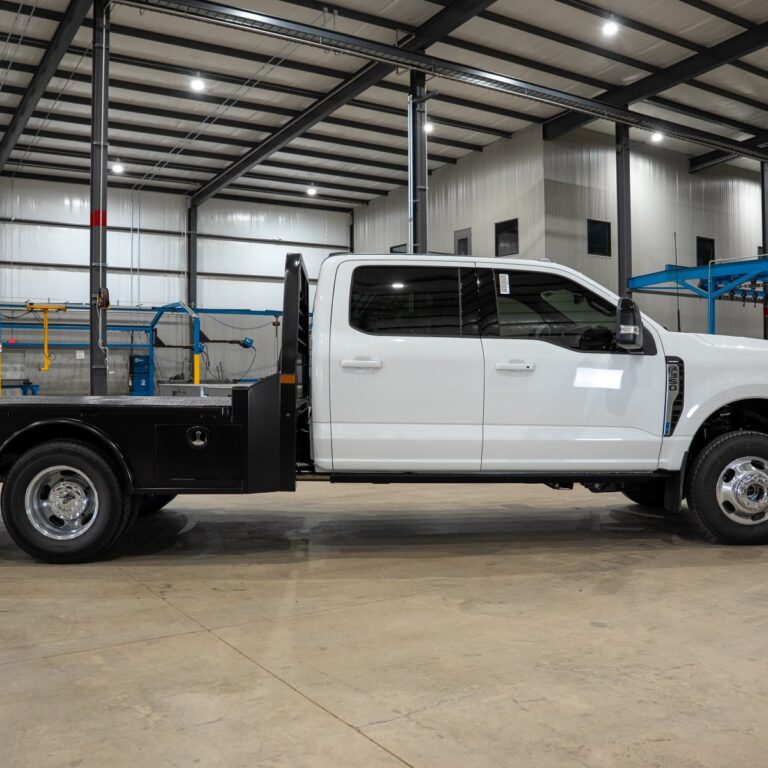

The XSB represents the next evolution in skirted truck bodies. It’s where sleek design meets advanced functionality. With fully boxed fenders, an integrated headache rack, and our exclusive XSteps positioned in front of and behind the wheel wells, every detail is built for smarter access, greater storage, and elevated performance. This is a body that doesn’t just look the part. It sets the new standard for what a skirted body should be.
Specs & Options
| Feature | Availability | Details |
|---|---|---|
| Available Lengths | Standard | 84", 8'6", 9'4", 11'4" |
| XCoat | Standard | NXG's proprietary multi-stage cleaning and powder coating system delivers unmatched corrosion resistance and a professional, durable finish built for harsh environments |
| XRack | Standard | Fully integrated headache rack system, built into the body—not bolted on—with precision 3" x 4" steel tubing, mandrel bends, and built-in Xlights with strobe capability for job-site safety |
| XDeck | Standard | Fully recessed 1/8" steel tread plate deck maximizes cargo space and eliminates exposed edges, protecting against wear and corrosion |

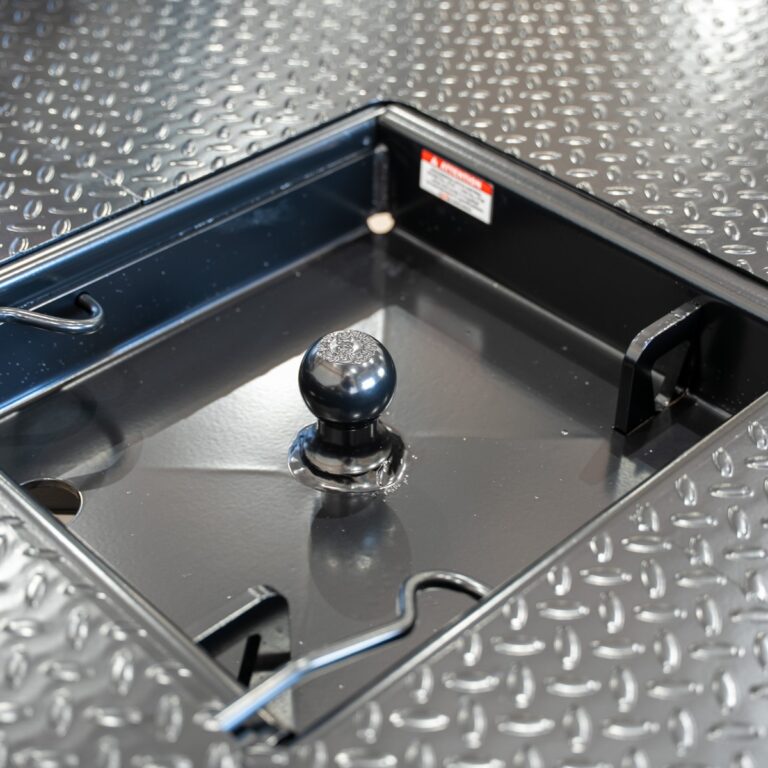

| XHitch | Standard | Frame-integrated towing system with 30,000 lb gooseneck, 24,500 lb receiver, upright safety chain keepers, pre-wired electrical connections, and an emergency breakaway loop |
| Side Rails | Standard | 3/8" × 2" formed steel rub rails with integrated stake pockets and tie-down compatibility |
| Fuel Fill | Standard | Angled, corrosion-resistant design improves flow, reduces splashback, and features rear-facing location for easier fueling |
| Trailer Light Plug | Standard | Automotive-grade seven-way/four-way 12-volt electrical hookup for reliable trailer connections |
| Marker Lighting | Standard | DOT-approved LED bullet lights for road-ready visibility |

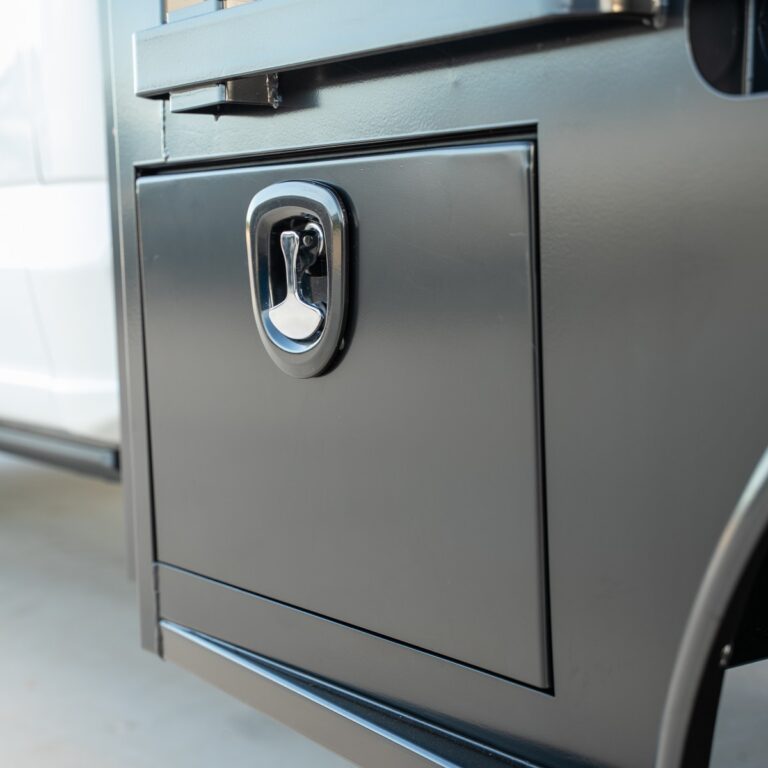

| Toolboxes | Standard | Four lockable flush-mounted toolboxes with bulb weatherstripping for maximum sealing and corrosion protection |
| Toolbox Handles | Standard | Black T-handle compression latches, all keyed alike for convenience and security |
| Fenders | Standard | Heavy-duty steel radius fenders for lasting durability |

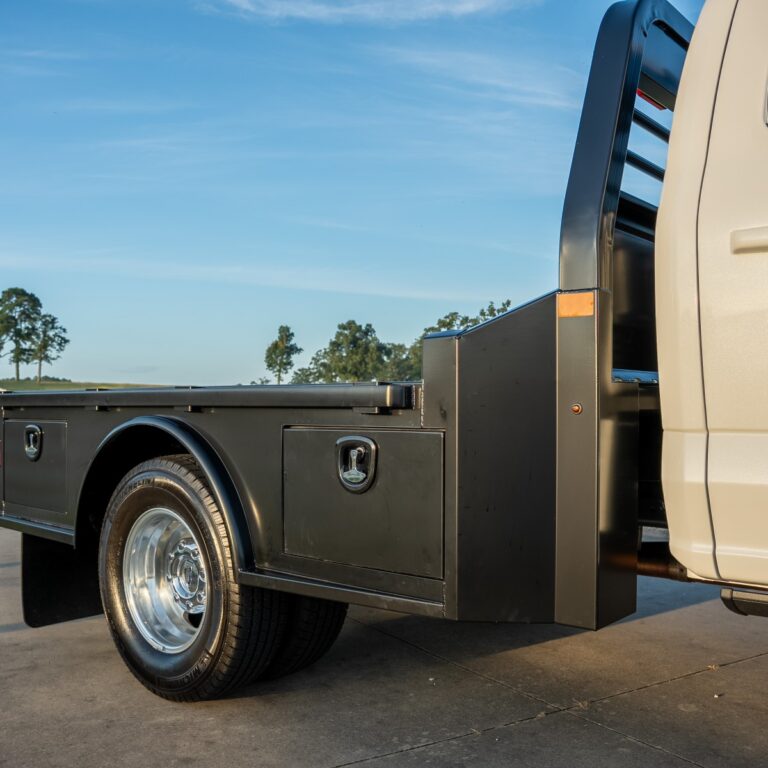

| Side Steps | Standard | NXG XSteps in front of and behind fenders, plus rear step for unmatched bed access |
| Frame Rails | Standard | 4" structural channel steel |
| Crossmembers | Standard | 3" roll-formed steel for superior deck support and load capacity |
| Rear Skirt | Standard | One-piece formed steel with tapered corners for improved turning clearance |
| Gooseneck Hitch | Standard | XHitch rated at 30,000 lbs |

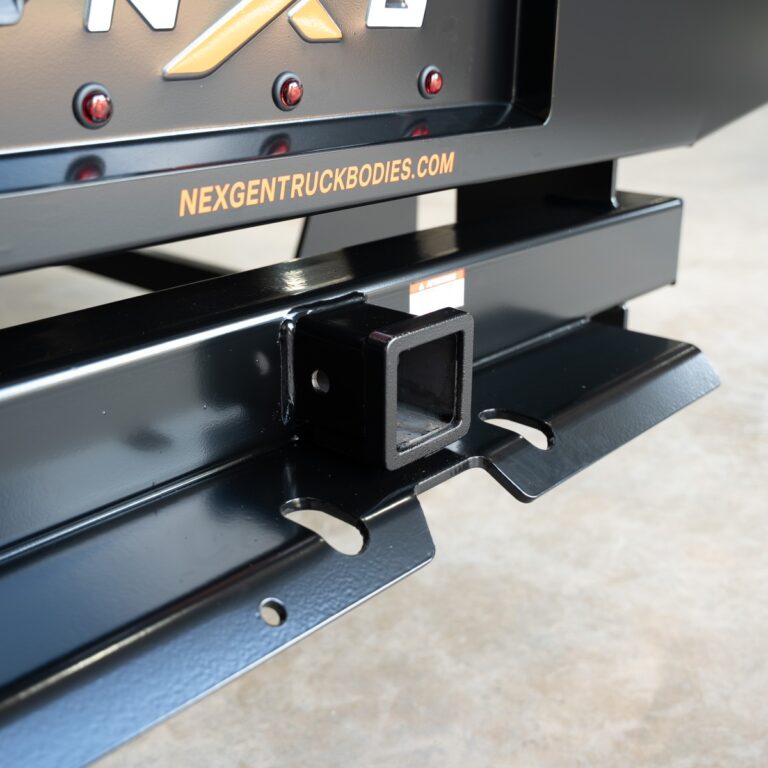

| Receiver Hitch | Standard | XHitch rated at 25,000 lbs with 2.5” receiver |
Standard Features
XHitch
Frame-integrated towing system with 30,000 lb gooseneck, 24,500 lb receiver, upright safety chain keepers, pre-wired electrical connections, and an emergency breakaway loop for the safest towing experience in the industry.XLights

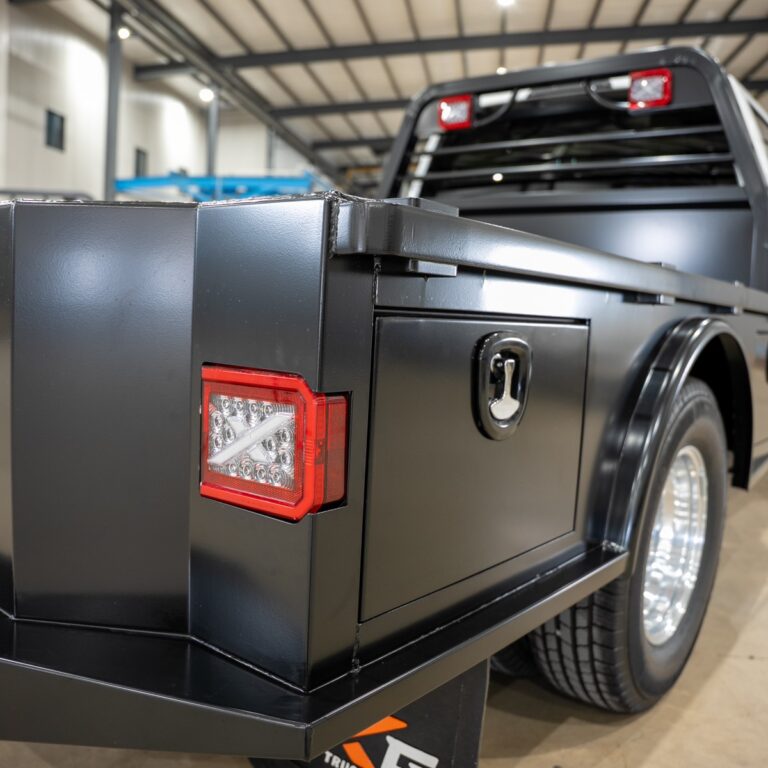

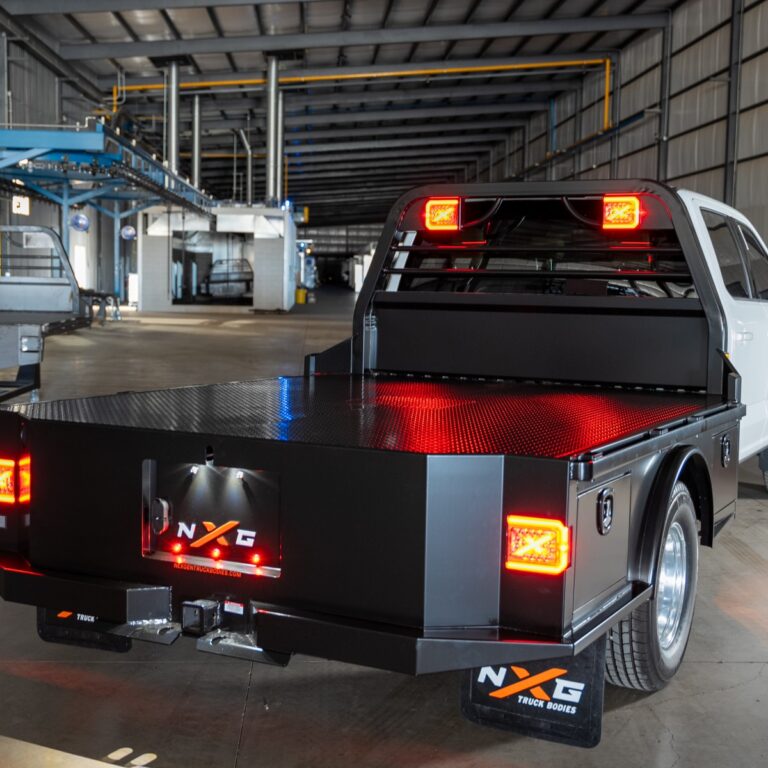

Featured in both the XRack and rear body for enhanced visibility. High output automotive-grade taillights—not outdated trailer lights. XLights integrate stop, tail, turn, and backup functions for maximum visibility and convenience. Best of all, these lights have Amber strobe capability as a standard feature.Side Rails
3/8″ × 2″ formed steel rub rails with integrated stake pockets and tie-down compatibility.XRack: Fully Welded Headache Rack
NXG’s one piece fully integrated XRack is built into the body with mandrel bends, heavy-duty crossbars, and gussets for added strength, cab protection, and vibration resistance—while housing our signature XLights for superior visibility.XDeck

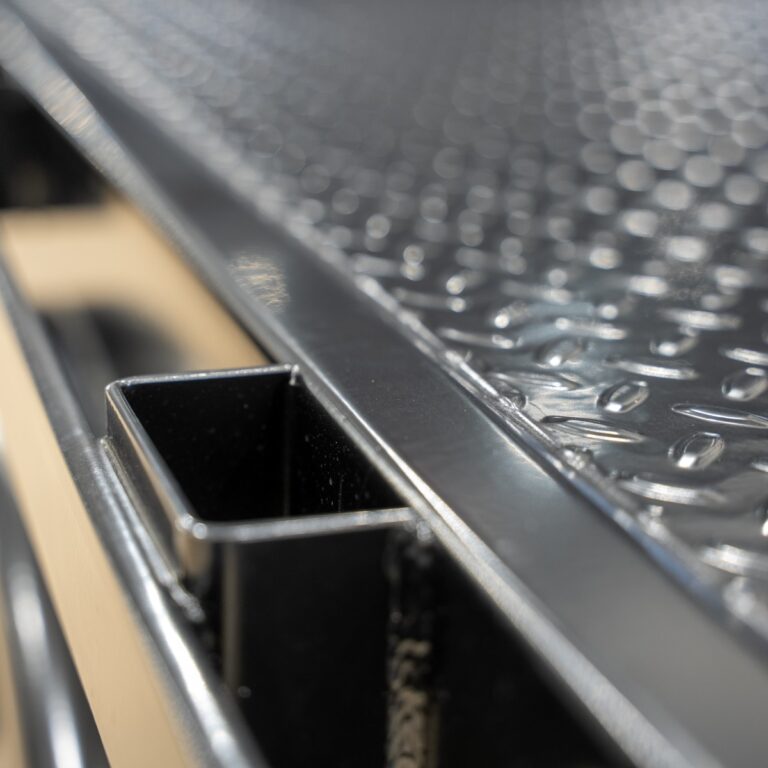

When you look at an NXG body, you will quickly think smooth. That starts with our decks. Our fully recessed 1/8″ steel treadplate deck maximizes cargo space and eliminates exposed edges, protecting against wear and corrosion.
